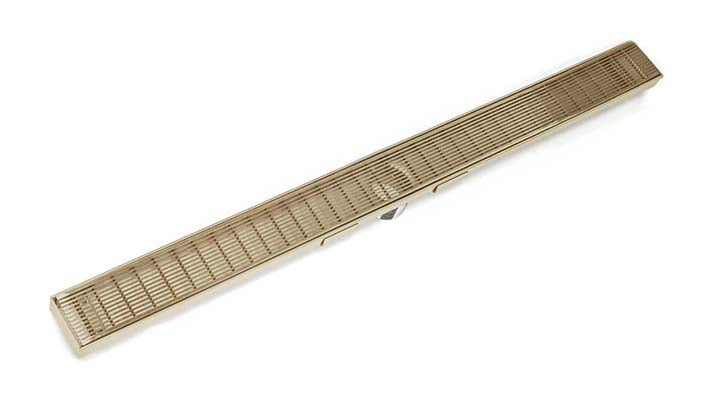

Infinity Drains S-AS 65

Infinity DrainsSKU: S-AS 6536. SS
filler

Finish: Satin Stainless - SS
Size: 36" grate, 28" stainless steel channel, and 8" stainless steel outlet assembly
Price:
$922.50
Shipping calculated at checkout
 More payment options

Description

S-AS 65 FEATURES
- Site Sizable: Modify length and locate outlet placement on site
- Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass
- 12 gauge, 316 stainless steel wedge wire top grate with stainless steel channel
- Overall width: 2-7/8", Min. height above waterproofing: 1-3/16"
- Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate.
- Requires 2" clamp down floor drain with 2" throat (strainer size). Not included in complete kit.

FINISHES AVAILABLE
- Satin Stainless - SS
- Polished Stainless - PS
- Lifetime Oil Rubbed Bronze - ORB
- Satin Bronze - SB
- Matte Black - BK

COMPLETE KITS

S-AS 6536: (1) 36" grate, 28" stainless steel channel, and 8" stainless steel outlet assembly
S-AS 6548: (1) 48" grate, 40" stainless steel channel, and 8" stainless steel outlet assembly
S-AS 6560: (1) 60" grate, 52" stainless steel channel, and 8" stainless steel outlet assembly
S-AS 6572: (1) 72" grate, 64" stainless steel channel, and two 8" stainless steel outlet assemblies
S-AS 6596: (2) 48" grates, 88" stainless steel channel, and two 8" stainless steel outlet assemblies

S-AS 65 Kit

Available in complete kits or as components. For shorter sizes purchase kit length greater than size needed and modify on site. For longer lengths build components up to desired length.

DOWNLOADS


Submittal Sheets

S-AS 65 SUBMITTAL SHEET PDF

Install Instructions

S-AS 65 INSTALL PDF

CAD Files

DOWNLOAD ZIP FILE
