S-AG 38 FEATURES
- Site Sizable: Modify length and locate outlet placement on site- Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass- 12 gauge, 316 stainless steel wedge wire top grate with PVC channel- Overall width: 1-7/8"- Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate.- Requires 2" clamp down floor drain with 2" throat (strainer size). Not included in complete kit.
FINISHES AVAILABLE
- Satin Stainless - SS- Polished Stainless - PS- Lifetime Oil Rubbed Bronze - ORB- Satin Bronze - SB- Matte Black - BK
COMPLETE KITS
- S-AG 3836: (1) 36" grate, 33-13/16" PVC channel, stop ends, and 2-3/16" outlet assembly
- S-AG 3848: (1) 48" grate, 45-13/16" PVC channel, stop ends, and 2-3/16" outlet assembly
- S-AG 3860: (1) 60" grate, 57-13/16" PVC channel, stop ends, and 2-3/16" outlet assembly
- S-AG 3872: (1) 72" grate, 69-13/16" PVC channel, stop ends, and 2-3/16" outlet assembly
- S-AG 3896: (2) 48" grates, 93-13/16" PVC channel, stop ends, and (2) 2-3/16" outlet assemblies

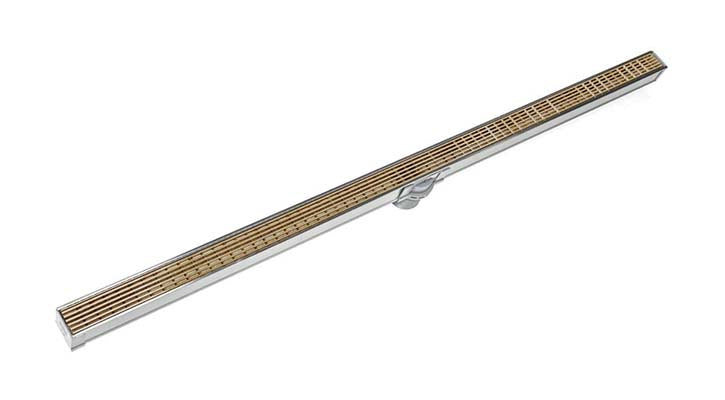

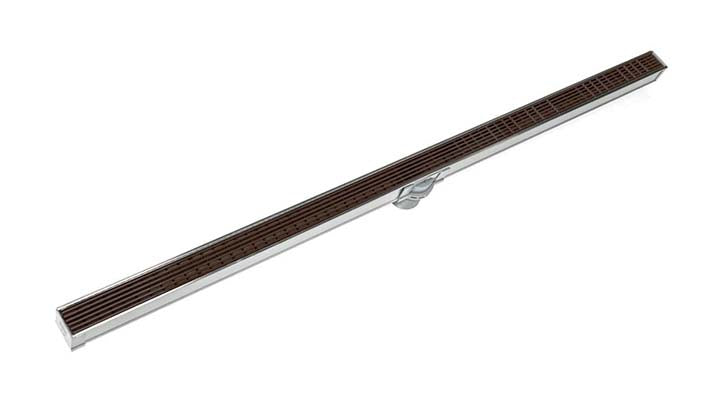

S-AG 38 Kit
Available in complete kits or as components. For shorter sizes purchase kit length greater than size needed and modify on site. For longer lengths build components up to desired length.
DOWNLOADS
Submittal Sheets
S-AG 38 SUBMITTAL SHEET PDF
Install Instructions
S-AG 38 INSTALL PDF
CAD Files
DOWNLOAD ZIP FILE
ZIP contains multiple DXF files
